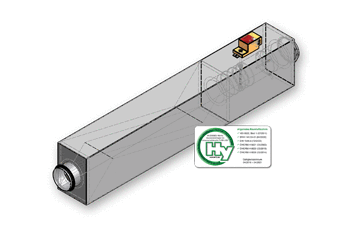

Volume flow controller with redirect muffler

Volume flow controller with redirect muffler PVSR-USD

The PVSR-USD compact unit with integrated VAV/CAV compact regulator, with MP bus interface, for variable or constant air volume flow systems with control valve and airtight shut-off function, is suitable for room air and for the position independent installation into air supply and extract air.

EXTERNAL INSPECTION:
(HYGIENEINSTITUT DES RUHRGEBIETS)
The construction design complies with hygiene requirements as stipulated in the guidelines contained in VDI 6022 (Blatt 1 07/2011), SWKI VA104-01 (04/2006), DIN 1946-4 (12/2008), ÖNORM H 6021 (09/2003), ÖNORM H 6020 (03/2015) and ÖNORM H 6038 (02/2014), and is in accordance with performed expert appraisals on hygiene.

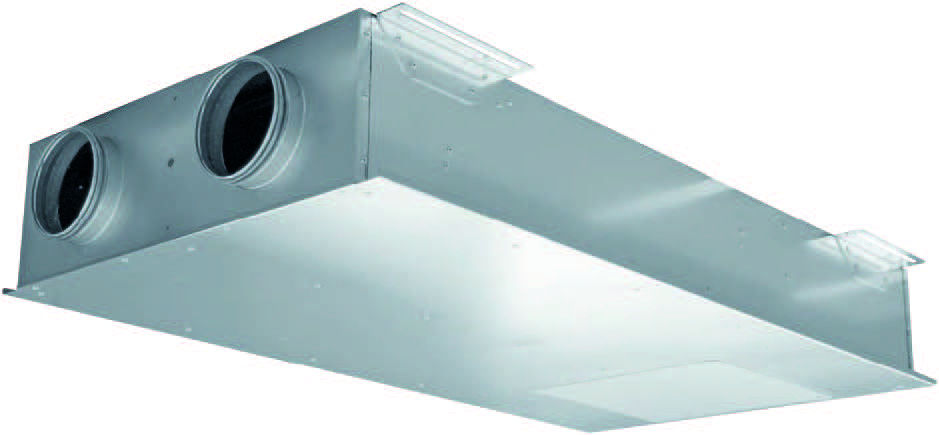

combined sound absorber, volume flow controller and distributor box

VAV-USD-BOX

NEW: VAV-USD box with deflection silencers for insertion attenuation. With or without MP bus interface, in left- or right-handed version. Integrated deflection silencers for supply and exhaust air, with efficient and flow-optimised as well as acoustically optimised deflection silencers with absorption and response elements for optimum sound insulation.

EXTERNAL INSPECTION:
(HYGIENEINSTITUT DES RUHRGEBIETS)
The construction design complies with hygiene requirements as stipulated in the guidelines contained in VDI 6022 (Blatt 1 07/2011), SWKI VA104-01 (04/2006), DIN 1946-4 (12/2008), ÖNORM H 6021 (09/2003), ÖNORM H 6020 (03/2015) and ÖNORM H 6038 (02/2014), and is in accordance with performed expert appraisals on hygiene.

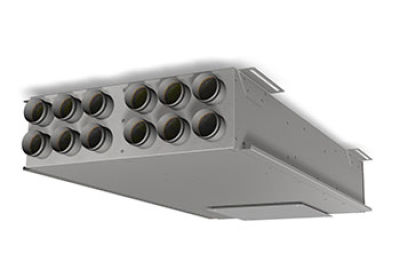

combined sound absorber, volume flow controller and distributor box

VAV-USD-SLU-BOX

NEW: VAV-USD-SLU box with deflection silencers for insertion attenuation and integrated duct silencers for cross-talk attenuation. With or without MP bus interface, in left- or right-handed version.

EXTERNAL INSPECTION
(Hygieneinstitut des Ruhrgebiets)
The construction design complies with hygiene requirements as stipulated in the guidelines contained in VDI 6022 Blatt 1 (01/2018), SWKI VA104-01 (04/2006), DIN 1946-6 (05/2009), ÖNORM H 6021 (08/2016), ÖNORM H 6020 (03/2015) and ÖNORM H 6038 (02/2014), and is in accordance with performed expert appraisals on hygiene.

Compatible Systems:
Images © J. PICHLER Gesellschaft m.b.H.

Centralised MHRV

Centralised MHRV



Energy-efficient modular units LG 750 to LG 6000 for central ventilation in multi-storey residential, school buildings, etc. More Info

Humidity Sensor

HUMIDITY SENSOR



for ventilation control to suit requirements. The ventilation unit will automatically increase or reduce the air volumes depending on the humidity of the air in the room. The sensor is of the surface-mounted and flush-mounted type.

Temperature Sensor

TEMPERATURE SENSOR



for the temperature measurement and heating control of an additional room in connection with the heating circuit module. The sensor is of the surface-mounted and flush-mounted type.

CO2 Sensor

CO2 SENSOR



for ventilation control to suit requirements. The ventilation unit will automatically increase or reduce the air volumes depending on the quality of the air in the room. The sensor is of the surface-mounted and flush-mounted type.
