Compact Ventilation

Product description Compact Units System VENTECH, LG 150 - LG 500P, PHI certified.

The passive house certified compact ventilation units are used for controlled ventilation. Developed and produced in Klagenfurt. The compact ventilation units LG 150 - LG 450 can also be operated flexibly with the PICHLER app.

Mechanical Heat Recovery Ventilation Systems:

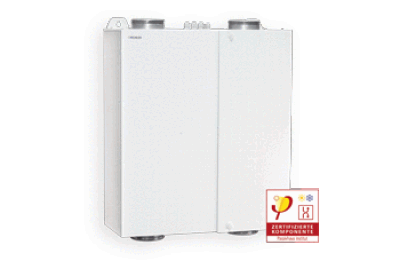

LG150

PHI certified MHRV
Standard variant A:
Living areas from 40 m² to 120 m²
Air flow: 30 to 150 m³ / h

Variant B:
Living areas from 40 m² to 160 m²
Air flow: 30 to approx. 200 m³ / h

LG250A

Passive House Institute certified MHRV
Sap Appendix Q Listed

Living space from 80 m² to 200 m²
Air flow: 80 to 250 m³ / h

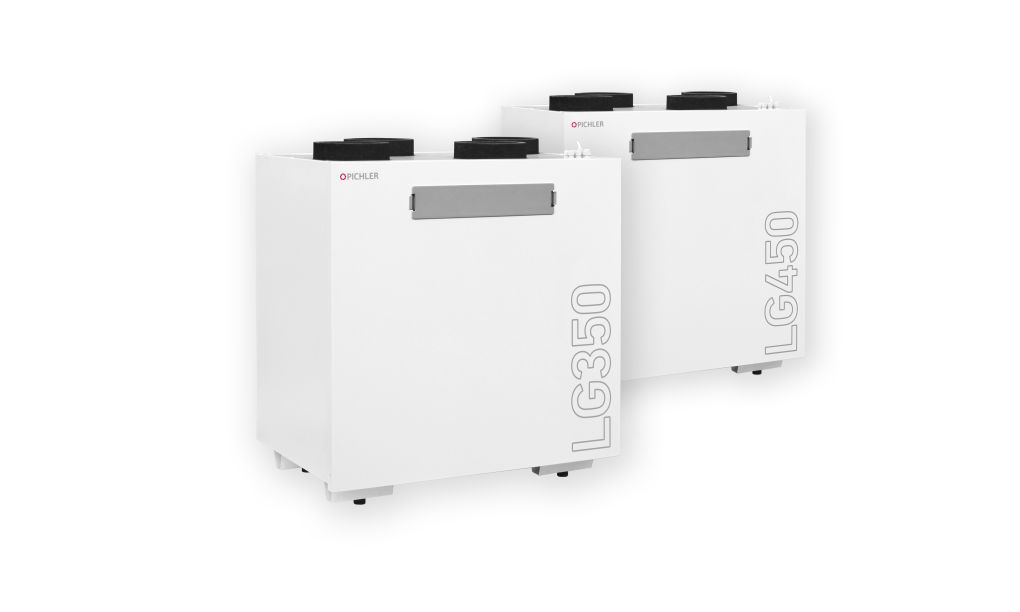

LG350 / LG 450

Passive House Institute certified MHRV

Living areas from approx. 100 m² to approx. 350 m²
Air volume flow: 50 to 350 m³ / h / 450 m³ / h

LG500

Passive House Institute certified MHRV
Sap Appendix Q Listed
Living space from 150 m² to 400 m²
Air volume flow: 150 to 550 m³ / h
Networking: Possibilities for networking or connection to a higher-level building automation system
Integrated web server
Modbus RTU, Modbus TCP / IP, BACnet, LON

MHRV Accessories:
Images © J. PICHLER Gesellschaft m.b.H.

DUCT HEATING EXCHANGER

with integrated temperature limiter and thermal protection. The controller is the MHRV unit.

HOT WATER BATTERY HEATER

with integrated temperature limiter and thermal protection. The controller is the MHRV unit.

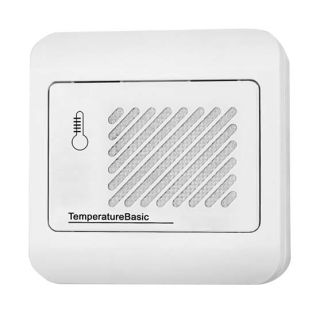

TEMPERATURE SENSOR

for the temperature measurement and heating control of an additional room in connection with the heating circuit module. The sensor is of the surface-mounted and flush-mounted type.

CO2 SENSOR

for ventilation control to suit requirements. The ventilation unit will automatically increase or reduce the air volumes depending on the quality of the air in the room. The sensor is of the surface-mounted and flush-mounted type.

HUMIDITY SENSOR

for ventilation control to suit requirements. The ventilation unit will automatically increase or reduce the air volumes depending on the humidity of the air in the room. The sensor is of the surface-mounted and flush-mounted type.

KomFlex Air Distribution Systems

The circular KomFlex® pipe with an outside diameter of 75 mm or 90 mm is suitable for use as a flexible supply or exhaust air pipe in central systems for controlled domestic ventilation .
Classification for fire behaviour according to ÖNORM EN 13501-1 dated 09.11.2009, which corresponds to ÖNORM B 3800-1 of class B2 and DIN 4102 - B2.

The oval ventilation pipe 132 x 52 mm is used as a flexible supply and exhaust pipe in buildings for controlled ventilation.

HYGIENE CERTIFICATION: (HYGIENE-INSTITUTE OF THE RUHRGEBIETS):
The execution corresponds to the requirements for the hygiene according to the regulations of the VDI 6022, sheet 1 (07/2011), SWKI VA104-01 (04/2006), ÖNORM H 6021 (08/2016 ), ÖNORM H 6038 (02/2014) from 10.10.2016 according to carried out hygienic assessments.

System components and technical data: 08Air Distribution Systems Comfort Ventilation.pdf (7.3 MB)
